Product name: Modular relief valve ZDB10
Brand : ONEDERFUL®
Model : ZDB10VP-1-40/315
Certificate: ISO9001-2008
Origin : China
Transportation : By sea / Air DHL / UPS / TNT / Fedex
Payment : T/T transfer Western Union PayPal L/C

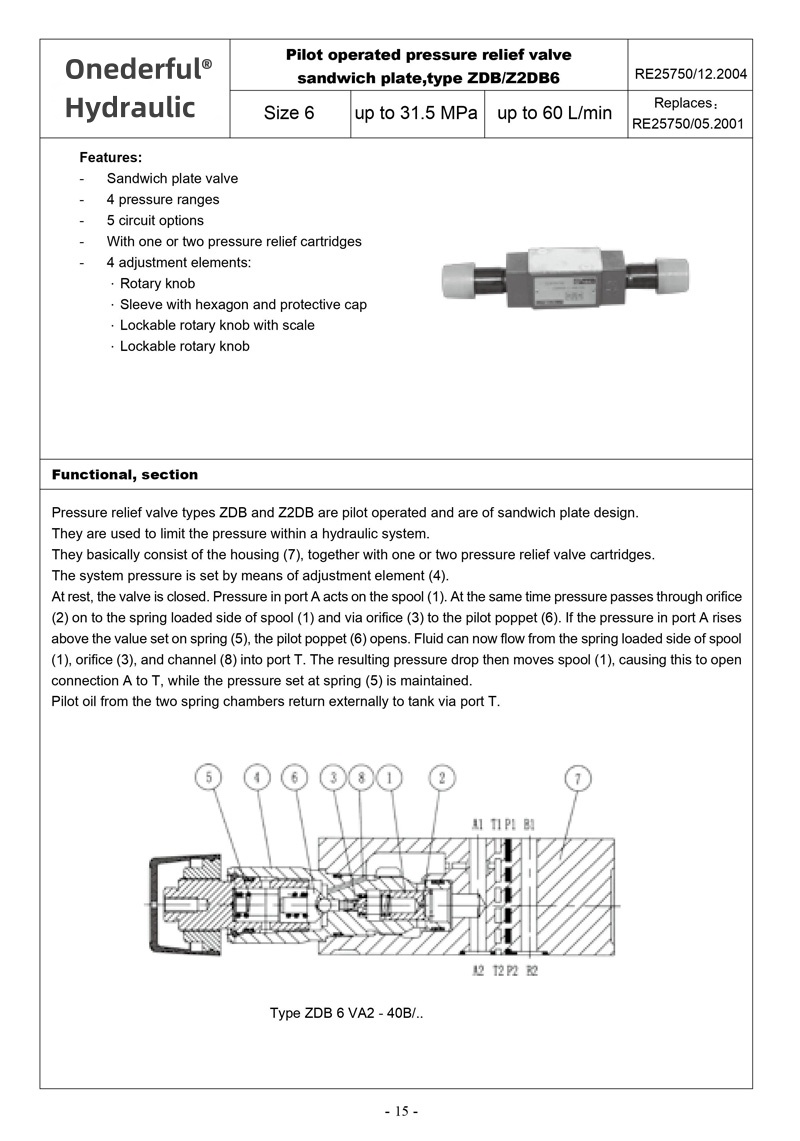

The modular relief valve is a type of hydraulic or pneumatic relief valve designed with a modular structure, allowing for customization and flexibility in system design. It typically consists of individual modules or components that can be assembled or disassembled easily. This modular design facilitates maintenance, repair, and adaptation to specific pressure control requirements within a hydraulic or pneumatic system. Users can configure and combine modules to achieve the desired relief valve functionality.
Minimum order quantity: 10 pieces
Payment method: T/T, Paypal, Western Union
Supply Ability: Annual output of 1,000,000
Delivery time: 10-15 days
Conventional packing: Wooden case
| PRODUCT PARAMETERS | |
| Specification | 10 |
| Max working pressure
Mpa |
31.5 |
| Max.Flow （L/min） | 100 |
| Pressure adjustment
Mpa |
5 / 10 / 20 / 31.5
|
| Design Number | 40 |
The company pursues the concept of “continuous innovation, the pursuit of first-class”, and is willing to provide domestic and foreign customers with high-quality products and satisfactory service.
