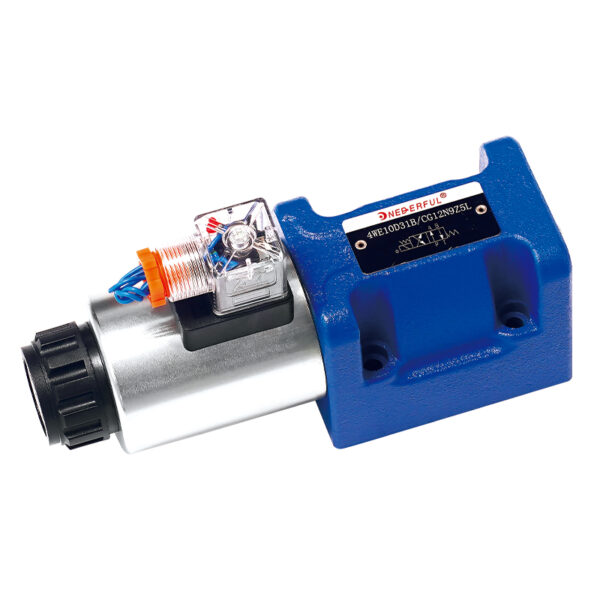

Product name: Solenoid directional valve WE10
Brand : ONEDERFUL®
Model : 4WE10D31B CG12N9Z5L
Certificate: ISO9001-2008
Origin : China
Transportation : By sea / Air DHL / UPS / TNT / Fedex
Payment : T/T transfer Western Union PayPal Credit card L/C
The main feature of the 4WE type electromagnetic directional valve is that the magnetic guide sleeve thread is directly screwed with the upper thread of the valve body, and the thrust generated when the electromagnet is energized and pulled in directly drives the spool valve of the directional valve for reversing movement, and controls the oil direction to start. , stop and commutation, there are four voltages to choose from 12V/24V/110V/220V.
Minimum order quantity: 10 pieces
Payment method: T/T, Paypal, Western Union
Supply Ability: Annual output of 1,000,000
Delivery time: 10-15 days
Conventional packing: Wooden case
| PRODUCT PARAMETERS | ||
| Specification | 10 | |
| Max working pressure
Mpa |
P/A/B ( Oil ports ) | 35 |
| T（Oil ports） | 21 | |
| Max.Flow （L/min） | 120 | |
| Working Voltage | DC | 12/24 |
| AC | 110/220 | |
